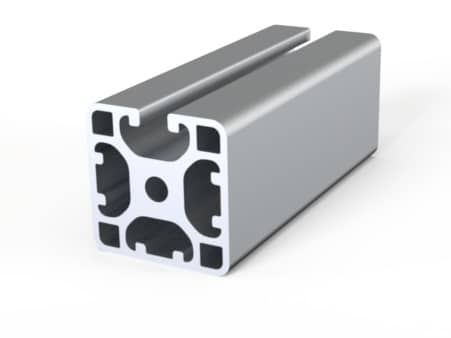

40 x 40 3N IR Profile

SKU: IR48026

Weight: 0.0019

Price per metre: £22.00. Cutting Charge: £1.24 per length. Available from 100mm to 6000mm

99774 in stock

Grand total

SKU: IR48026 Category:

You might also need

40×40 End Cap – IR only

SKU: KJN02601
£0.50 excl VAT £0.60 inc VAT
Select options

IR 40 X 40 Angle Bracket with Fixings

SKU: KJN41115
£3.52 excl VAT £4.22 inc VAT
Select options

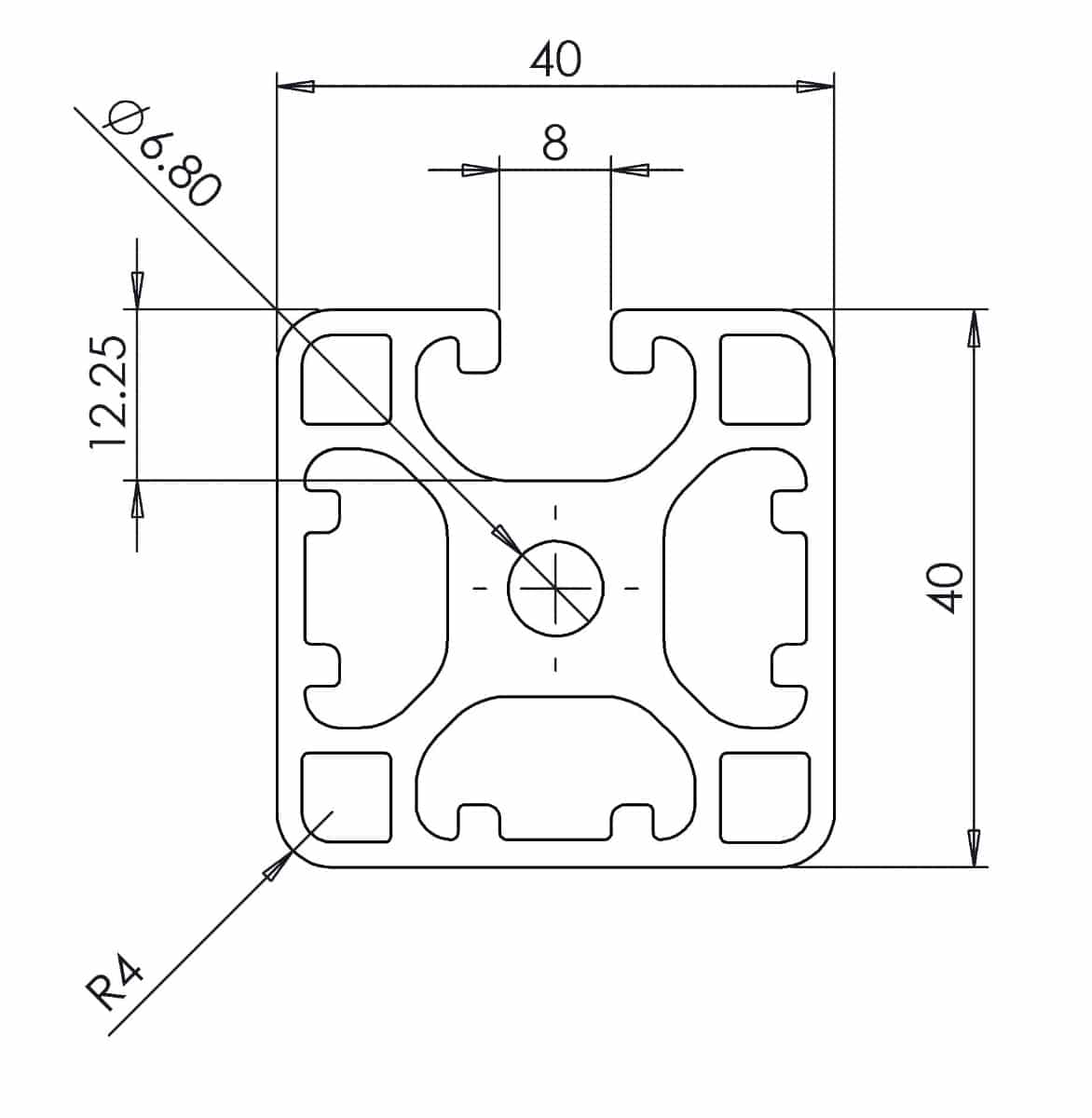

Description

Manufacturer: KJN Aluminium Profile
Maximum Length 6000mm
8mm Slot
Ix = 9,62cm4
Iy = 10,22cm4
Wx = 4,70cm3
Wy = 5,11cm3
Profile Surface = 6,96cm3
Mass = 1,90 kg/m
