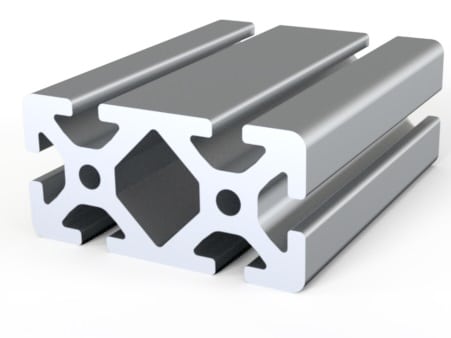

40 x 80 IR Profile
£0.00 Excl. Vat
Weight:
In stock
SKU
IR02604
Price per metre: £24.78. Cutting Charge: £1.50 per length
Available from 100 mm to 6000 mm
Manufacturer: KJN Aluminium Profile
Maximum Length 6000mm

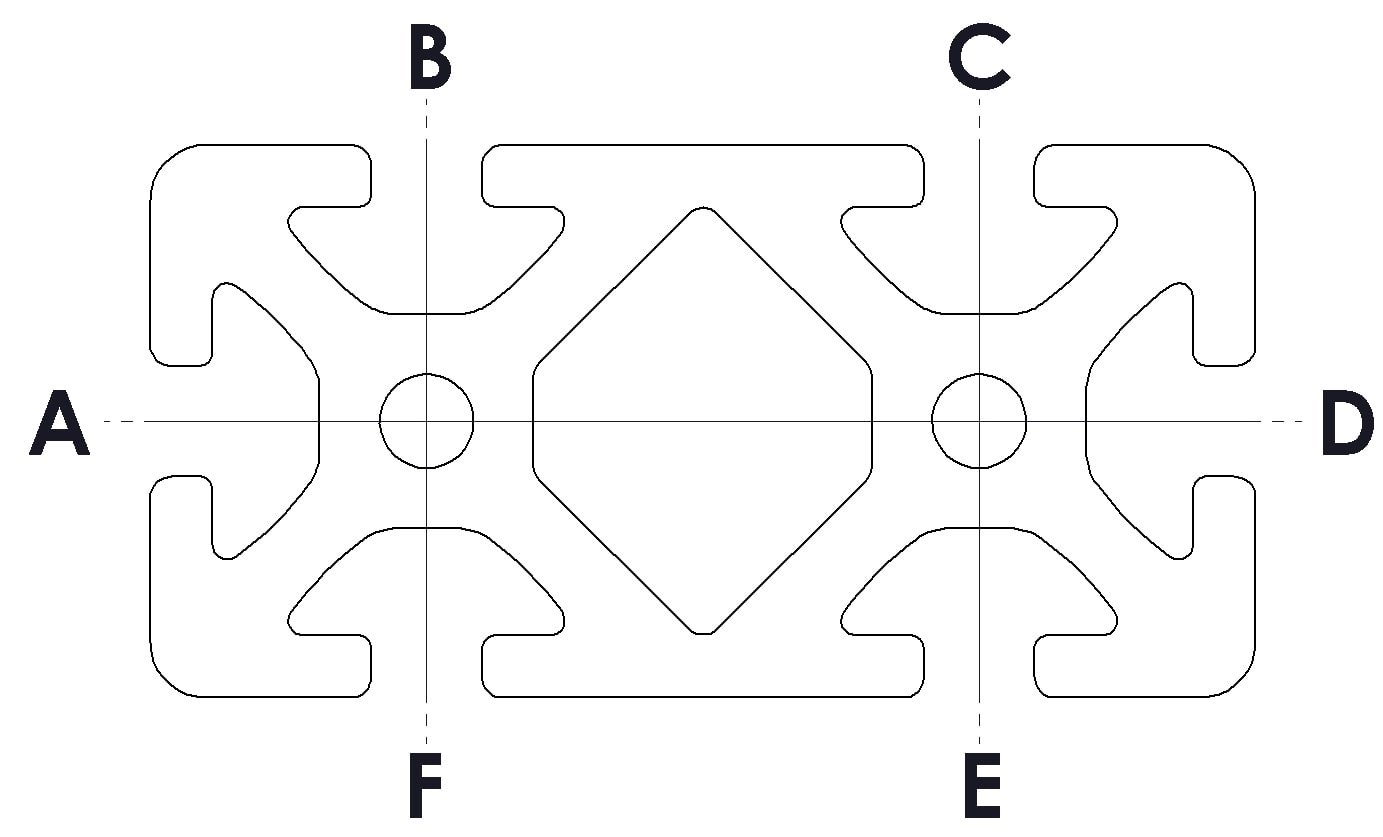

8mm Slot

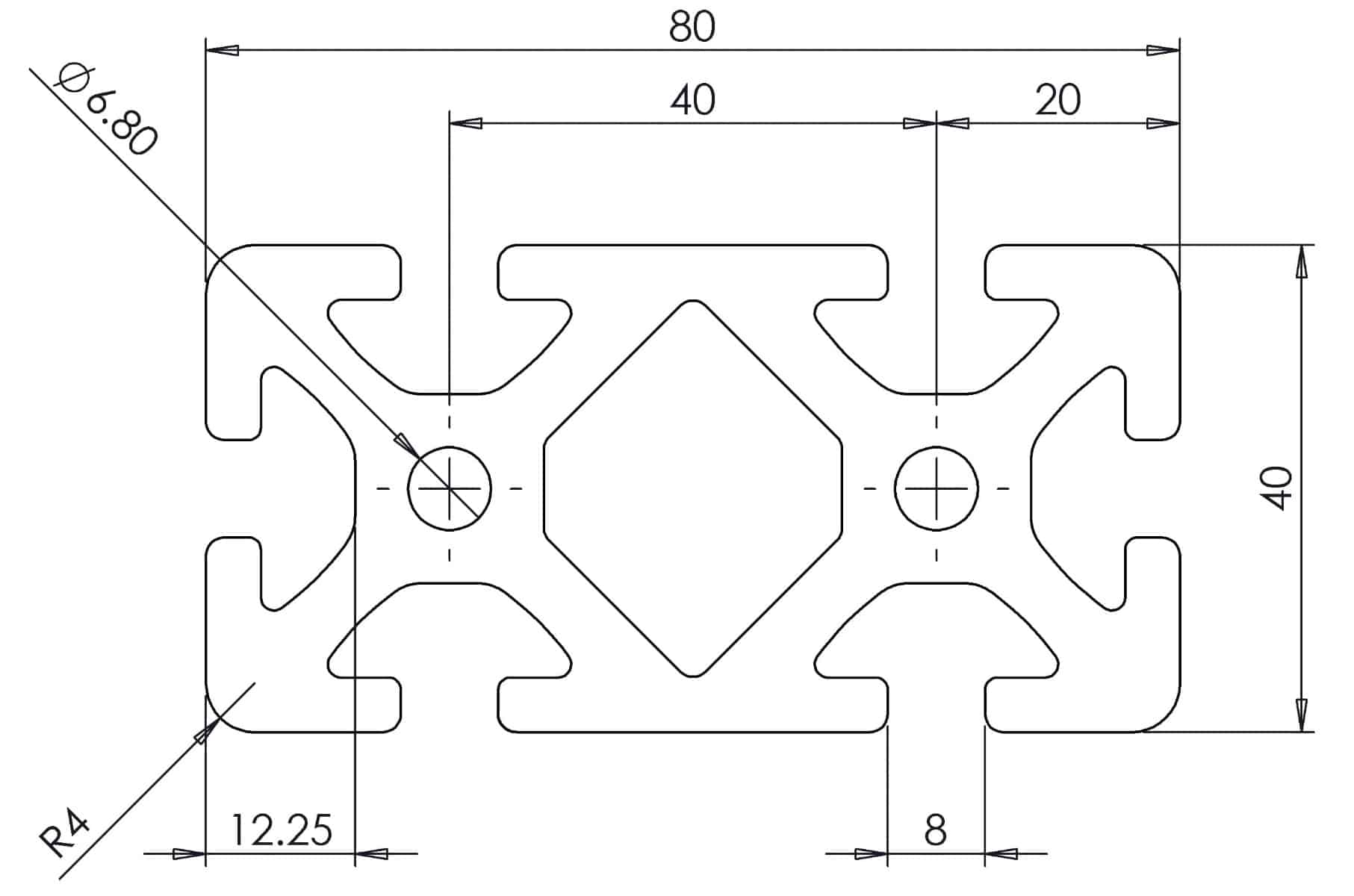

Ix = 26,87cm4 Iy = 101,19cm4 Wx = 13,44cm3 Wy = 29,29cm3 Profile Surface = 16,76cm3 Mass = 5,53 kg/m
Maximum Length 6000mm
8mm Slot
Ix = 26,87cm4 Iy = 101,19cm4 Wx = 13,44cm3 Wy = 29,29cm3 Profile Surface = 16,76cm3 Mass = 5,53 kg/m
Download DXF
