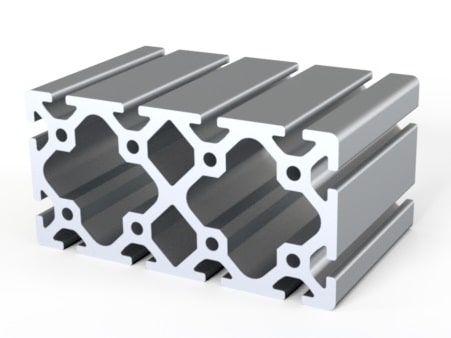

80 x 160 IR Profile
£0.00 Excl. Vat
In stock
SKU
IR26526
Manufacturer: KJN Aluminium Profile
Maximum Length 6000mm

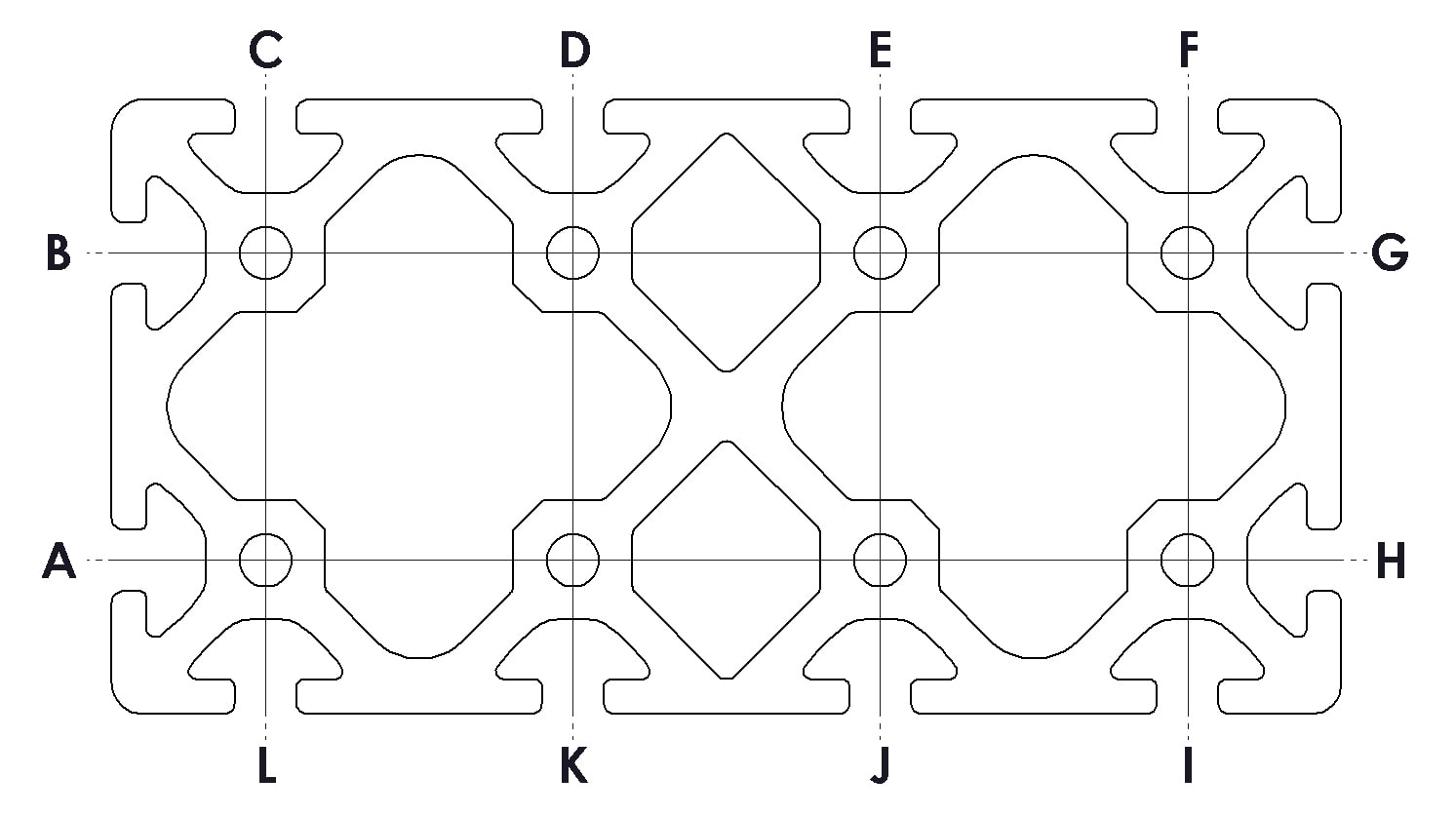

8mm Slot

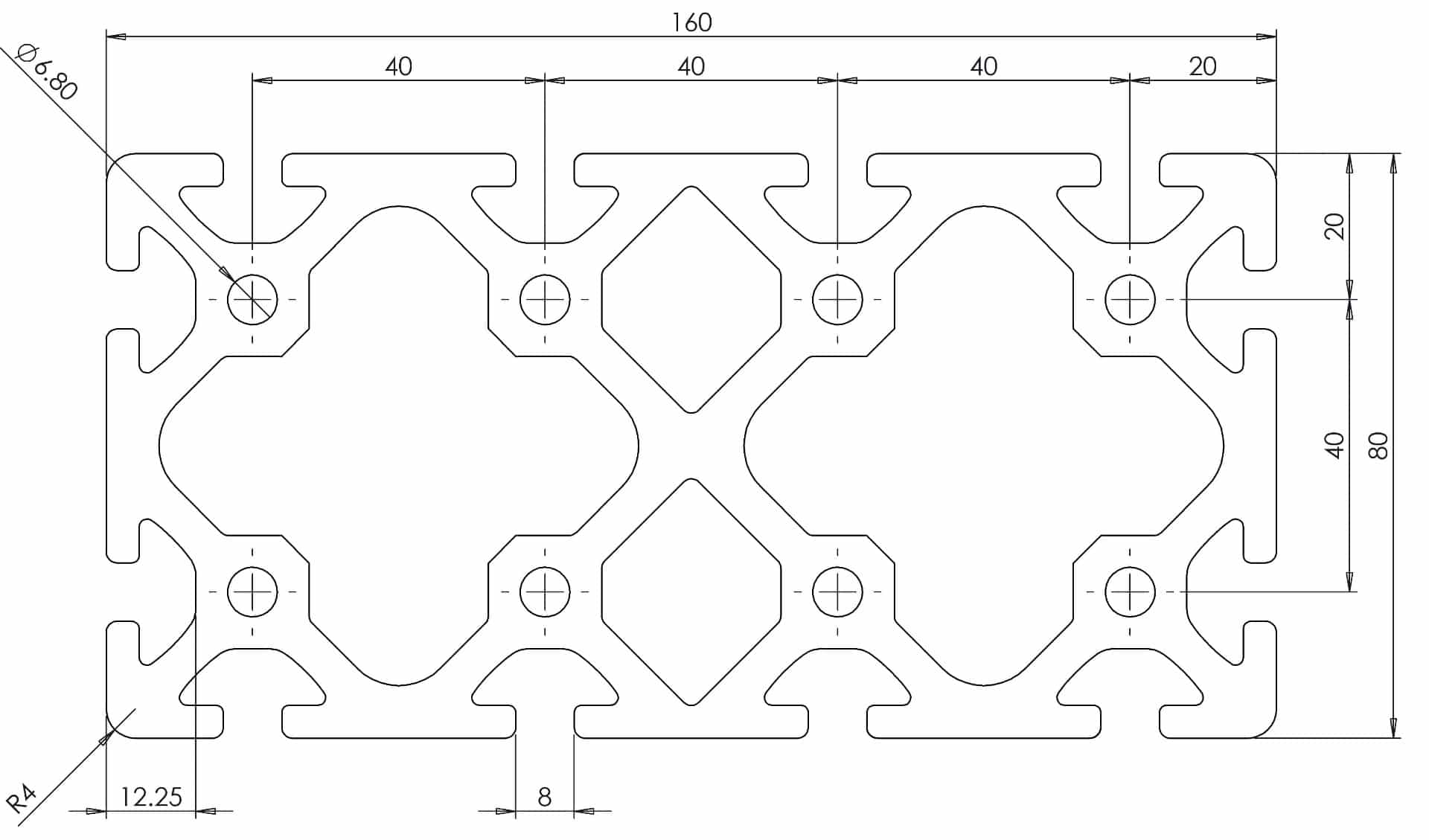

Ix = 360,89cm4 Iy = 1.228,33cm4 Wx = 90,22cm3 Wy = 153,54cm3 Profile Surface = 50,07cm3 Mass = 13,52 kg/m
PRICE ON APPLICATION
Maximum Length 6000mm
8mm Slot
Ix = 360,89cm4 Iy = 1.228,33cm4 Wx = 90,22cm3 Wy = 153,54cm3 Profile Surface = 50,07cm3 Mass = 13,52 kg/m
PRICE ON APPLICATION
Download DXF
